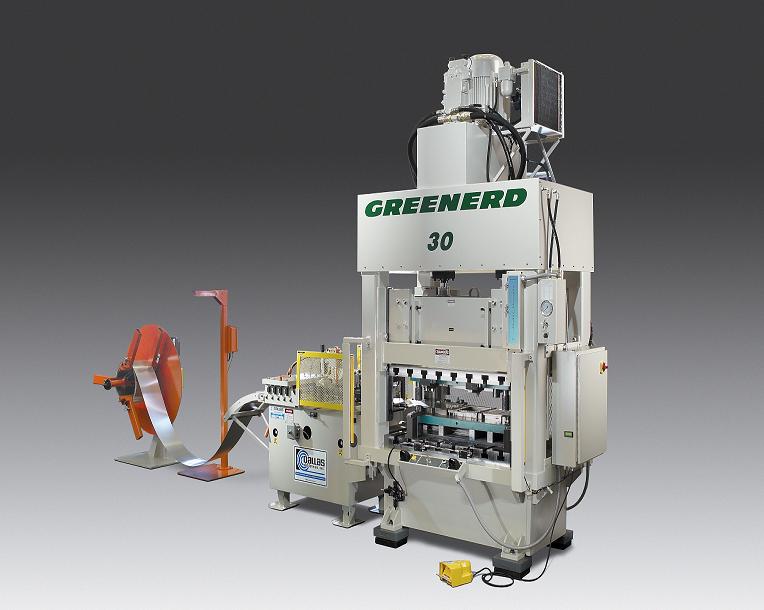

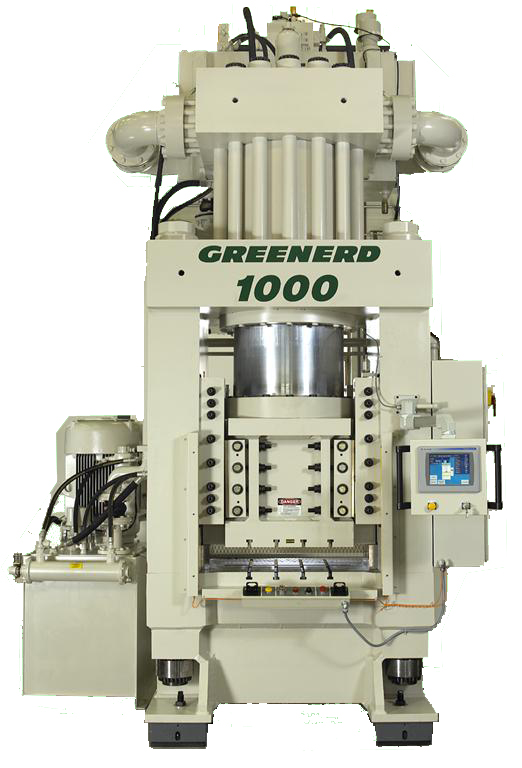

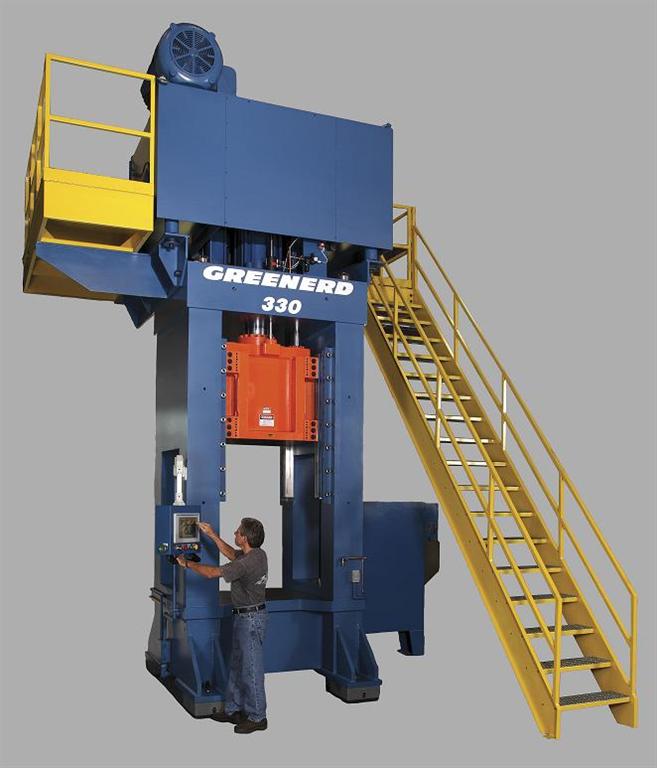

Gib Guided

Presses designed to counter the effects of off center loading. Rigid steel frames with gib guided slides maintain parallelism under severe loading conditions.

Features:

• Heavy, pretensioned frame provides maximum rigidity and minimum deflection for accurate parts and long tool life.
• Guided slide with 8- point gibbing. Adjustable self-lubricated bearings.
• Dual Palm Button control: anti-tie down, non-repeat controls with ring guards; conforms to OSHA.
• PLC press control is flexible and safe. PLC controls allow for customized press cycles.
• The press table is removable, making it quick and easy to drill and tap tool-mounting holes or resurface the table.
• Wide range of hydraulic systems to match your requirements.
• Large daylight and throat depth to accommodate large dies.
• Long stroke lengths are available with rapid close and open.
• Pressure and distance reversal systems are standard.

Options:

• More working area, stroke, and tonnage.
• Speed and Force control.
• Touch Screen control: Process feedback and simplified setups.
• T-Slots and mounting holes: custom designed for your tooling.
• Light curtains: improved safety for press operation; can also be used for PSDI.
• Automatic cycle operation.
• Auto leveling with multiple cylinders

Contact the sales department for more information.
